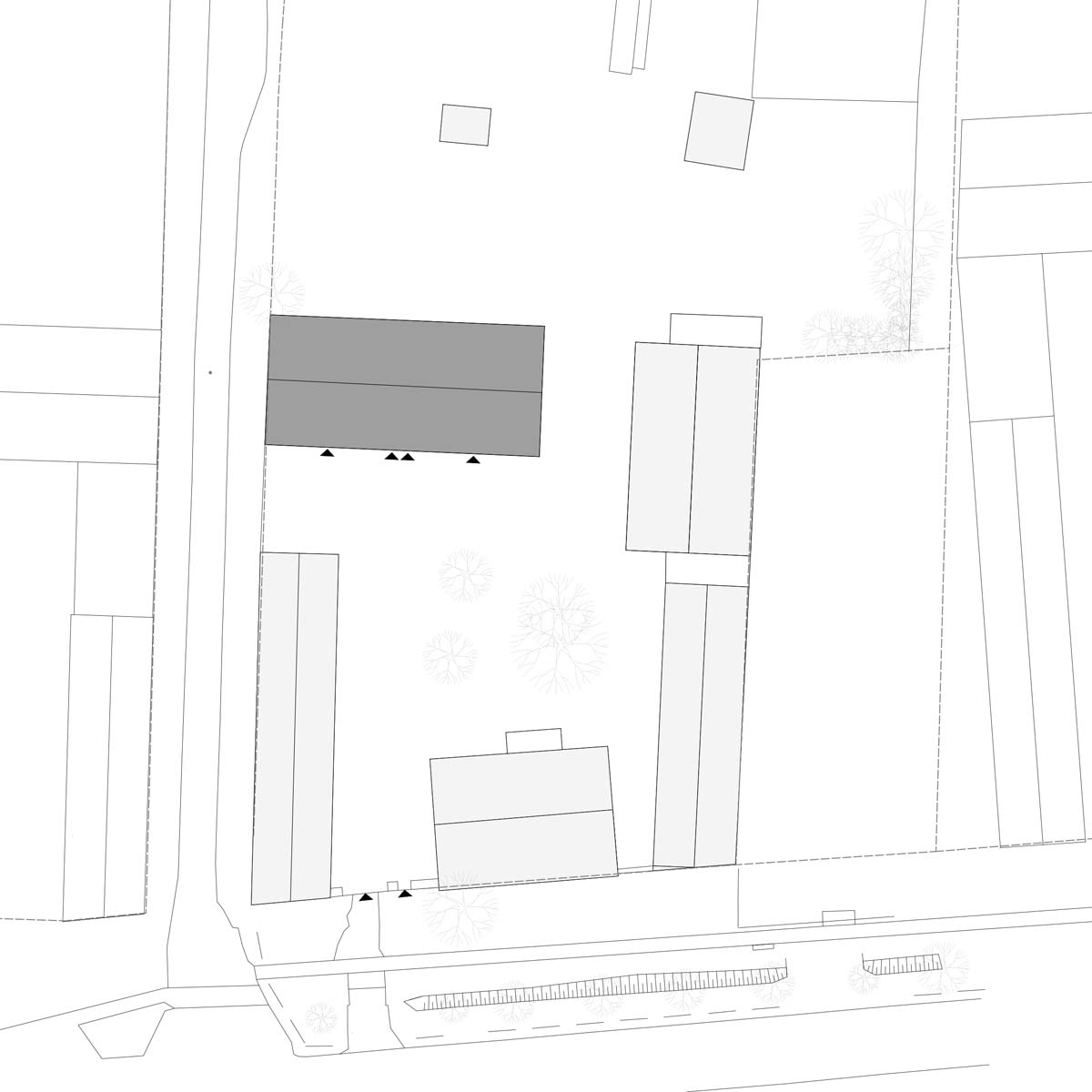

¯I Site Plan
Plan: IFUB* I¯

Schöner Hof



Conversion and renovation of a historically protected barn into 4-8 residential units


Location: 16775 Schönermark


Year: 2021 - currently under construction


Team IFUB*: Mikus Druviņš, Johannes Krohne, Bernhard Kurz, Clemens Gritl, Sarah Deuling


In collaboration with:
Lossen Ingenieure (structural engineering), Ingenieurbüro Andreas Wilke (fire protection and sound insulation), Wiltrud Weber (energy consulting), Ergosun (TGA planning)


Client: Hofgemeinschaft Schönermark GbR


Craftspeople: tbd
_I
I_
¯I View of the farm from the street
Photo: Hofgemeinschaft Schönermark I¯
In 2021, a building group acquired a hundred-year-old

four-sided farm

in Schönermark, around an hour north of Berlin, which had previously been used for horse holidays. The aim was and is to swap the noisy city for a quiet rural environment. There are five buildings on the property that date back to before 1924, including a farmhouse and four brick stables and barns. The buildings of the farm, which used to be run as an agricultural co-operative, underwent a number of modifications during the GDR era, but are largely preserved in their original condition. The first question that arose - which of the farm's five buildings should be remodelled? The historic house, the stables or the barns? The choice was not easy, which is why IFUB* provided support in the initial phase with various utilisation concepts in order to find the best possible solution.
_I
I_
¯I Back view of the barn
Photo: Hofgemeinschaft Schönermark I¯
After intensive preliminary investigations, the northern barn was chosen. The building was last used mainly as a

barn and stables.

At the end of the Second World War, a military hospital was housed on the farm, which was also used by the military. A discovery of ammunition confirmed this assumption.
_I
I_
¯I historical picture
photo: unknown I¯
A

historical picture

of the old farm still hangs in one of the buildings and shows the proud owners with their horses.
_I
I_
¯I View of the barn from the inner courtyard
Photo: Ifub* I¯
Architecturally and financially, the project was a challenge. How do you get

a building group with four families

ideally accommodated in an old barn structure that is not designed for flats? How can you keep an eye on the future at the same time? And how can it all be financed? The process of arriving at the final solution was intensive, but worthwhile. The barn is now divided into four two-storey units, which can either be occupied by one family each or split into two small residential units - depending on what the family situation requires.
_I
I_
¯I View Inside (existing building)
Photo: IFUB* I¯
The financial solution lay not only in the building group's own efforts, but also in the support of the monument preservation authorities. The specific rules for listed buildings made the planned extension concept affordable in the first place, as the change of use would otherwise have meant that the insulation standard of a new building would have applied and BEG funding would have been almost impossible. It was therefore possible to apply for funding as an

Efficiency House Monument

for the eight residential units.
_I
I_
¯I view Inside (existing building)
photo: IFUB* I¯
Before submitting the building application, but also for financing purposes, it had to be clarified whether the buildings were actually valuable historical - i.e. historically protected - structures. For this reason, the barn and stable buildings were examined at the Brandenburg State Office for the Preservation of Monuments at the request of the building group and designated as

monuments.

_I
I_
¯I Visualisation of house entrance doors
Bild: IFUB* I¯
In future, the building will be accessed via

four separate entrances,

which have been newly integrated into the brick façade. Behind each of these is a flat on the ground floor and one on the top floor - or a kind of small terraced house.
_I
I_
¯I Visualisation of the lift and slide system
Bild: IFUB* I¯
In order to preserve as much of the existing building as possible, the existing openings from different years of construction were used for the new, spacious

lift and slide systems

or cut in a similar shape, as shown here. The old wooden barn doors of the two largest openings have also been retained.
_I
I_
¯I Construction site photo
photo: Hofgemeinschaft Schönermark I¯
The project is currently

under construction

Unfortunately, the timber construction was largely dilapidated, which is why it had to be dismantled. Following the construction of a floor slab, the timber construction will be rebuilt in the same way as the existing structure with mostly new components. Completion is expected at the end of 2025. What the IFUB* is particularly keen to support - the construction group wants to carry out a large part of the interior work itself.
_I
I_
¯I Overview plan of the four-sided farm
Plan: IFUB* I¯

Overview plan

_I
I_
¯I Floor plan Ground Floor
Plan: IFUB* I¯

Floor Plan Ground Floor

_I
I_
¯I Floor Plan LOFT
plan: IFUB* I¯

Floor Plan LOFT

_I
I_
¯I Elevation South
plan: IFUB* I¯

Elevation South

_I
I_
¯I Elevation North
Plan: IFUB* I¯

Elevation North

_I
I_
¯I Elevation East
Plan: IFUB* I¯

Elevation East

_I
I_
¯I Elevation West
Plan: iFUB* I¯

Elevation West

_I
I_
¯I cross section BB
plan: Ifub* I¯

Cross Section BB

_I
I_
¯I Cross Section AA
plan: IFUB* I¯

Cross Section AA
