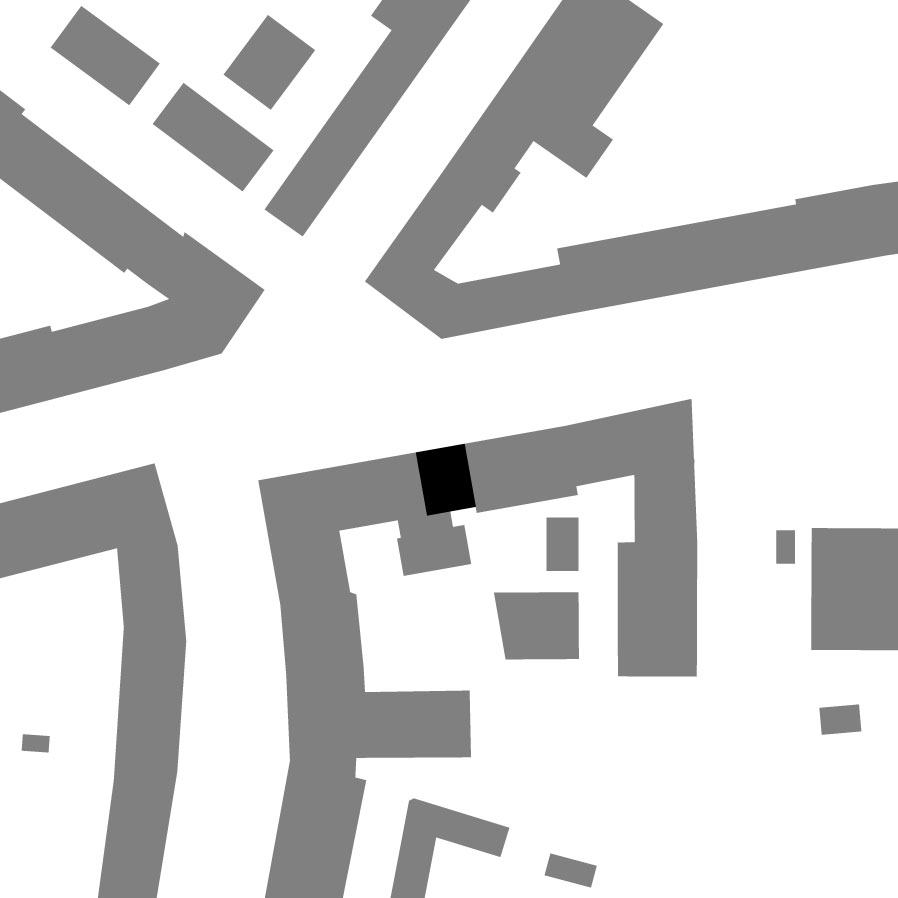

¯I Site Plan
plan: IFUB* I¯

Apartment O


Renovation and conversion of a heritage-listed old apartment

Location: 81541 Munich

Year: 2022-2024

Team IFUB*: Marco Bross, Bernhard Kurz, Johannes Krohne

Clients: private

Craftspeople:
Manfred Huber Restauration, HW Gebäudetechnik UG, Leonhard Winkler Elektrotechnik, Möbelwerkstätte Hanslmaier GmbH & Co.KG, Die Fliese Verlegung GmbH & Co.KG

_I
I_
¯I Cooking, living, eating
photo: Sorin Morar I¯
Optimizing old apartments to be family-friendly has become a specialty of IFUB*. In the case of

apartment O,

a number of conversions were possible in consultation with the listed building authorities. The space-saving redesign of the kitchen, living room and bathroom made it possible to create a much-needed additional room. At the same time, storage space was optimized, enabling the family of four to enjoy an airy and bright living area of approximately 84m². From a design perspective, we went all out, collaborating with the residents to develop a vibrant color and material concept that’s truly a joy to behold!
_I
I_

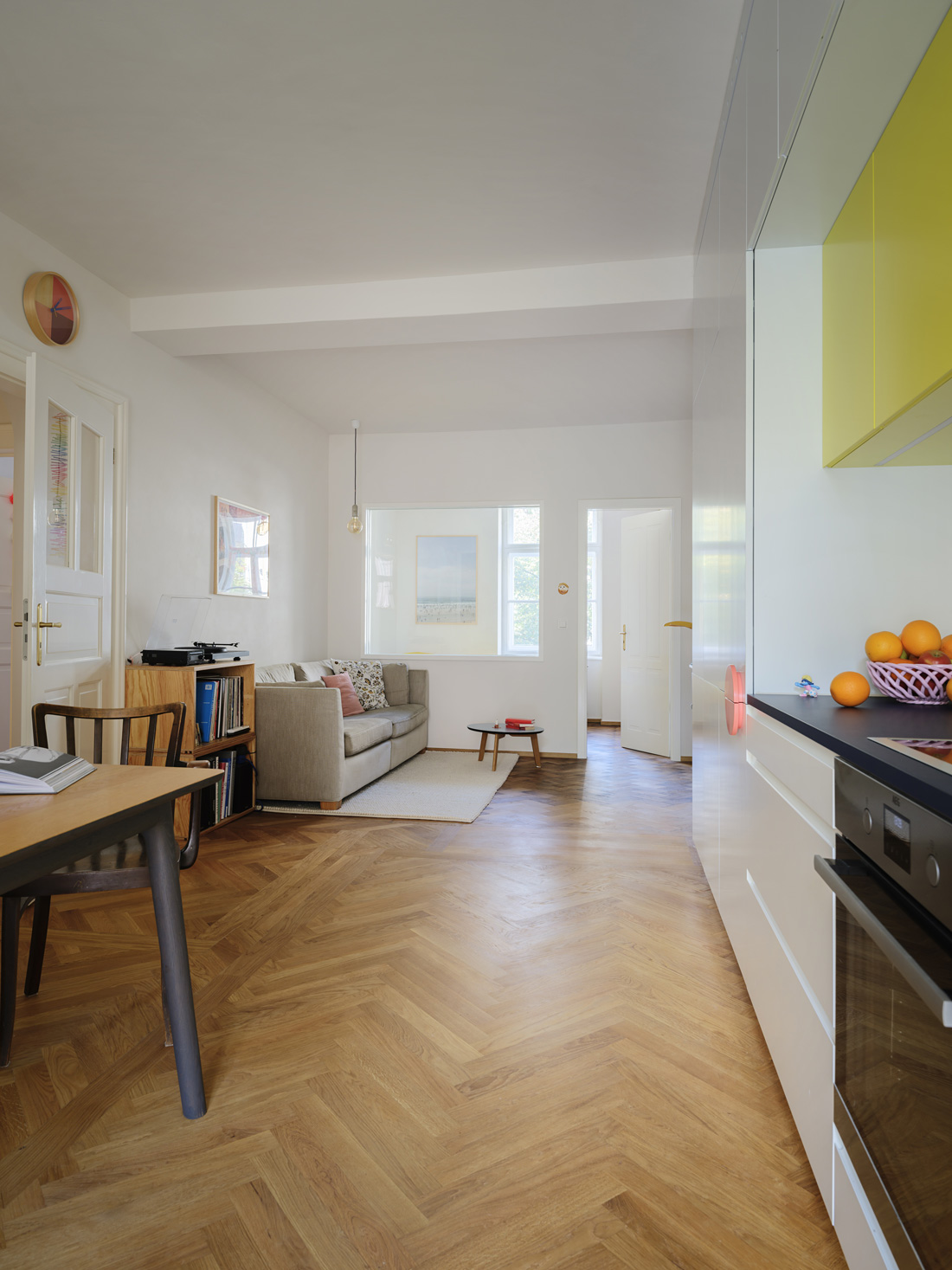

¯I cooking, living, eating
photo: Sorin Morar I¯

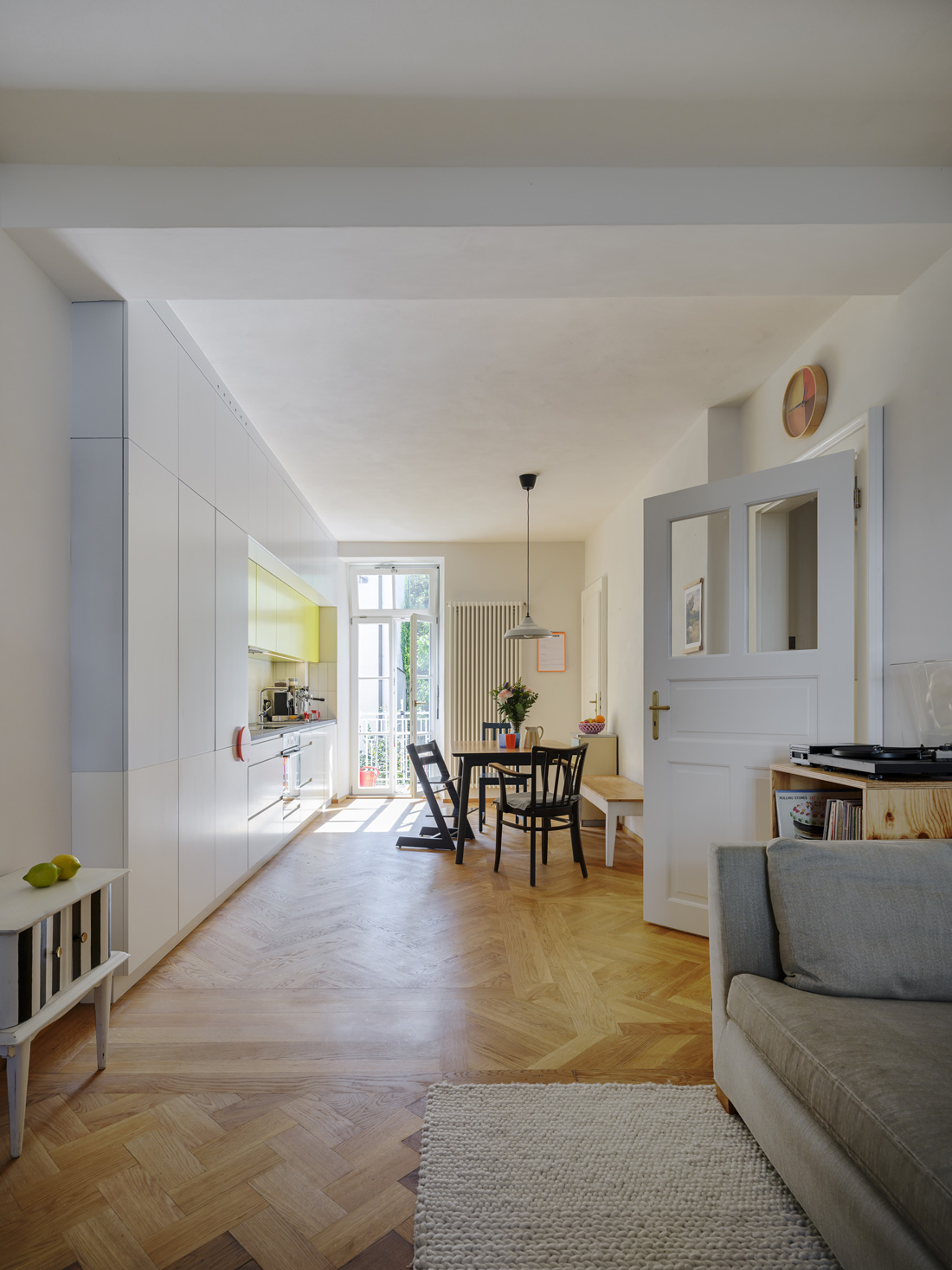

The most significant change was the removal of the partition wall and the old unused chimney flue to create a spacious room for

living, cooking and eating.

Also important: a bathroom and a storage room were turned into a new bathroom and an additional shower room. Despite this, it was possible to move the wall and create more space for the new kitchen with dining table. The course of the old walls can still be seen in the flooring.
_I
I_
¯I the new room
photo: Sorin Morar I¯
By optimizing living, cooking and eating into one room, enough space was created to separate

an additional room

in the area of the former kitchen. The master bedroom is now located here, as well as a small work area. A large, soundproofed window allows light to flood through the bedroom into the living room.
_I
I_

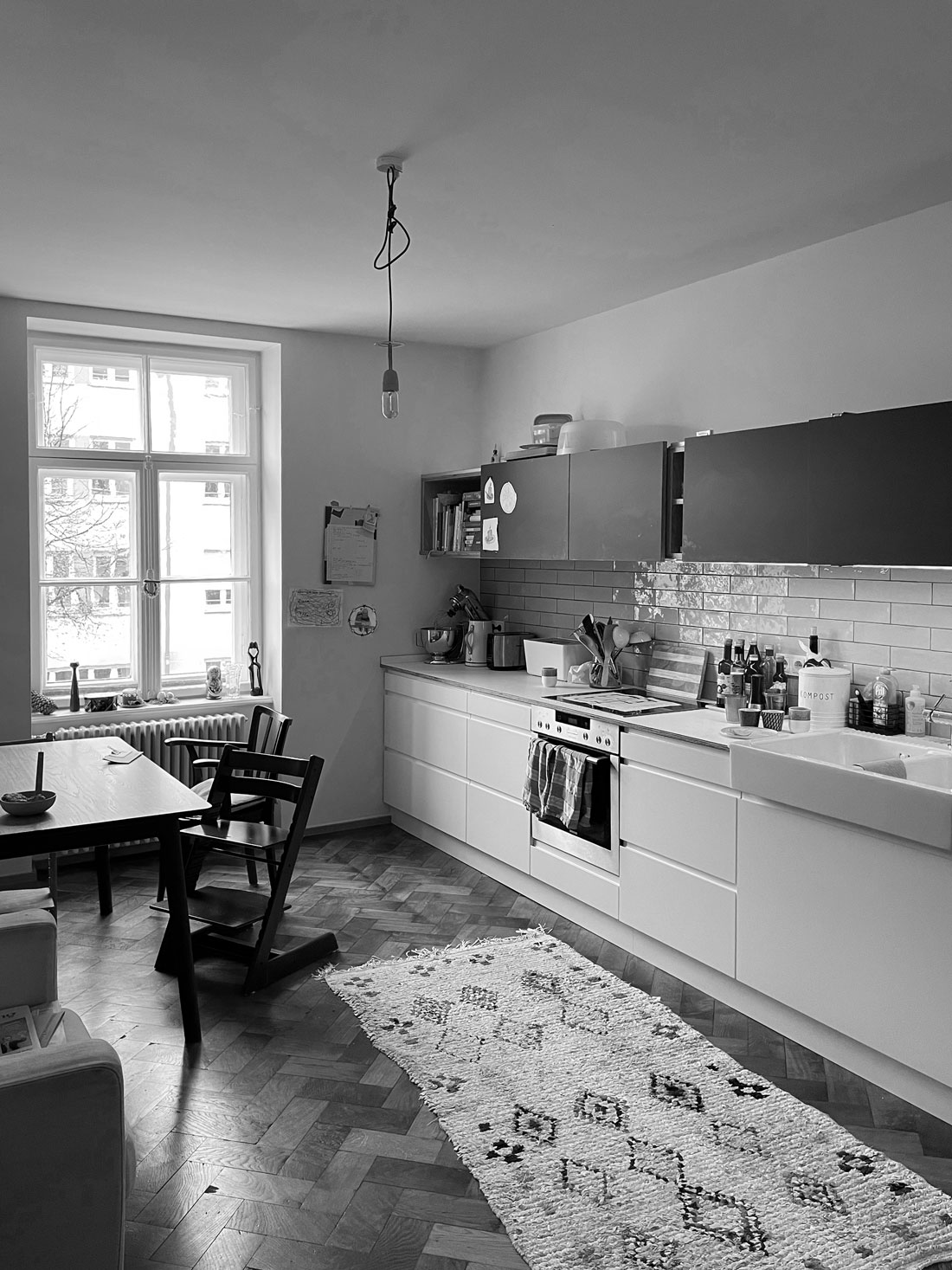

¯I Kitchen before renovation
photo: IFUB* I¯
The living room

before the renovation.

Where the parents' new bedroom is now, the kitchen used to be.
_I
I_

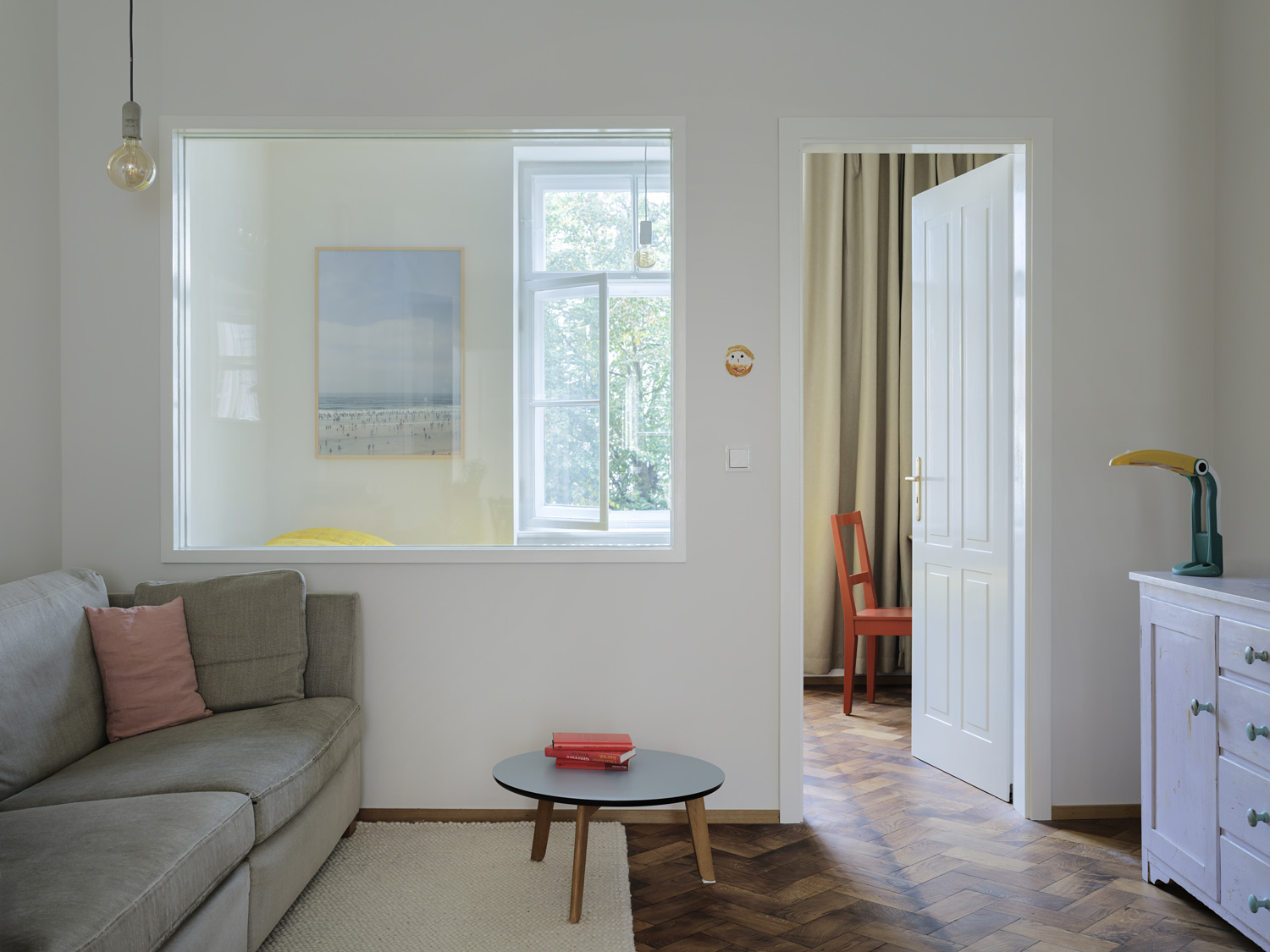

¯I the internal window
photo: Sorin Morar I¯

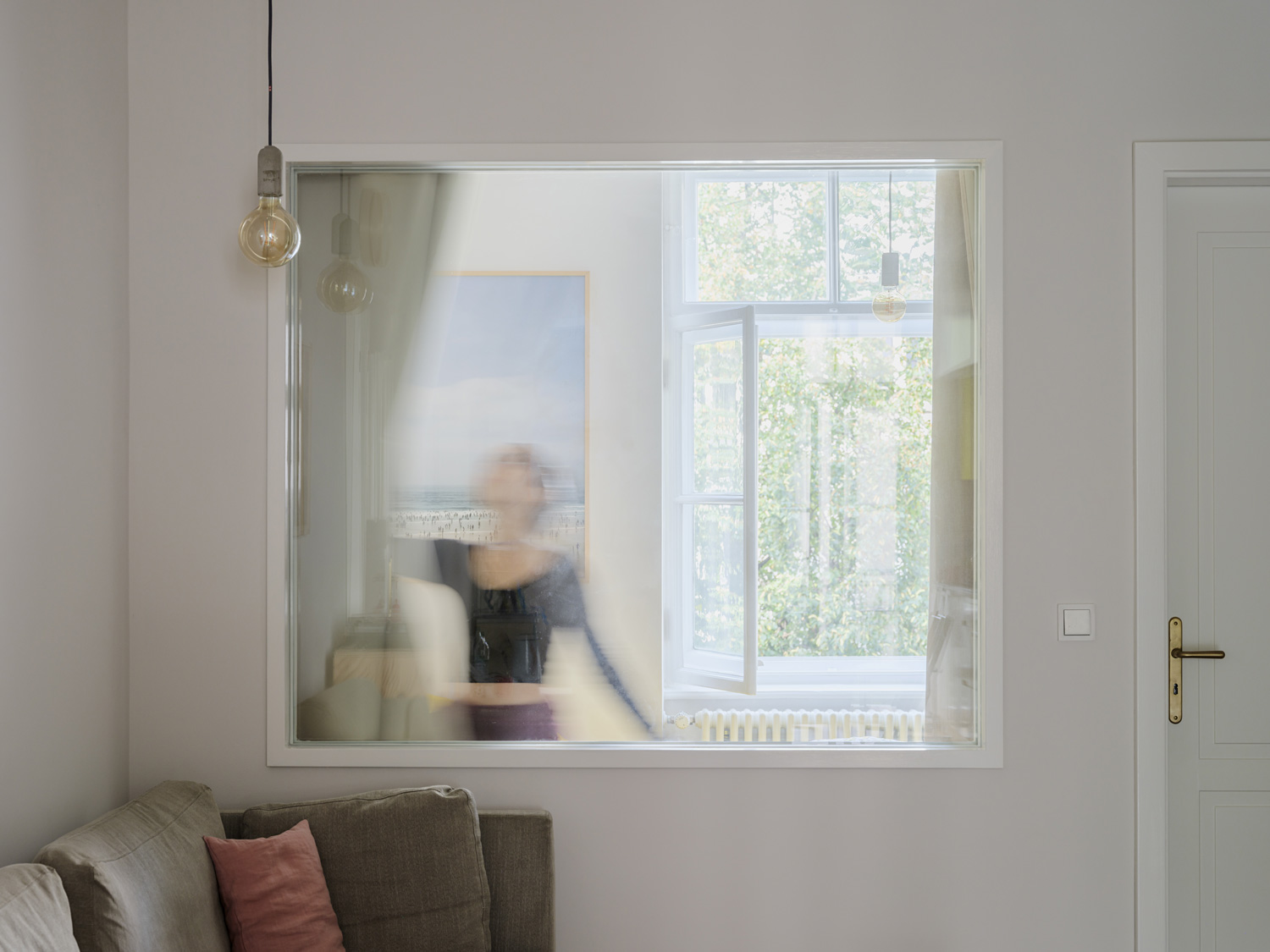

The internal window

is covered with a curtain in the evening. This ensures privacy.
_I
I_
¯I the kitchen
photo: Sorin Morar I¯

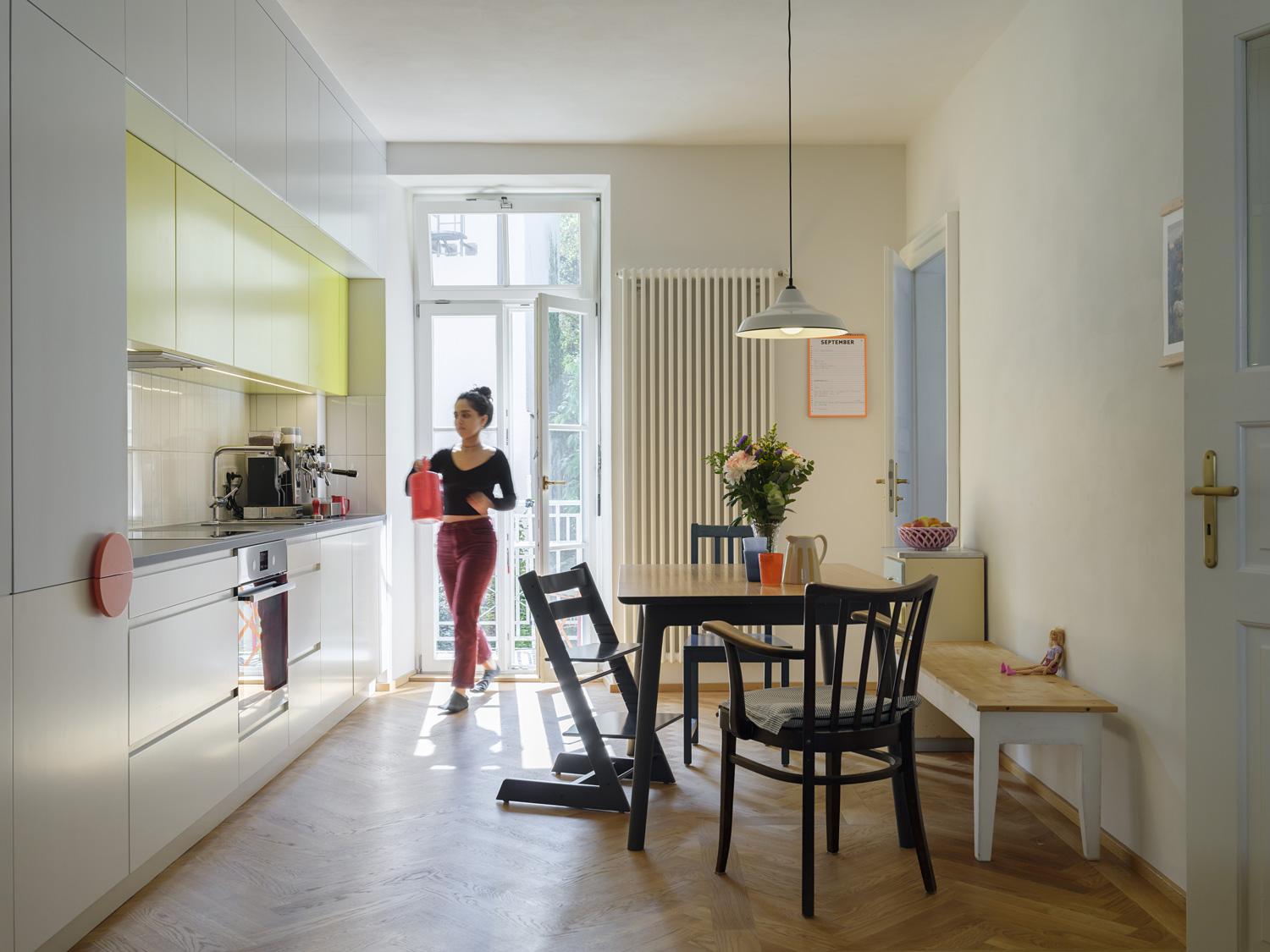

The kitchen

was moved to the other side of the building and is now positioned directly on the balcony facing the inner courtyard. The new bathroom and hallway are located behind the recessed wall made of clay building boards. To buffer moisture and odors, not only the new but also the old walls were filled with clay, and a new suspended ceiling made of clay building boards was installed.
_I
I_

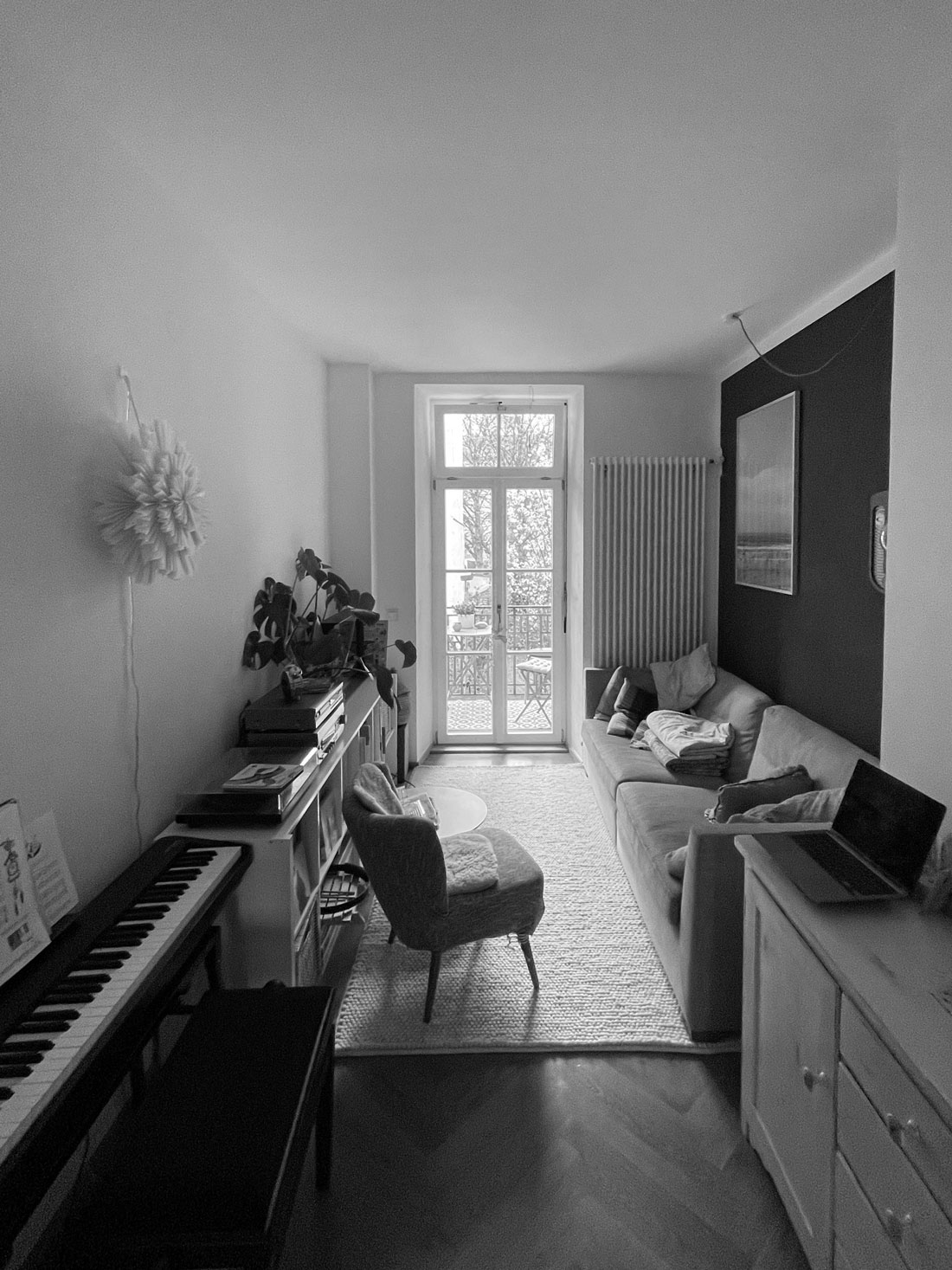

¯I Living room before renovation
photo: IFUB* I¯
The kitchen

before the renovation

The room was much narrower and therefore only suitable as a small living room. The new spacious kitchen is now located here.
_I
I_
¯I the kitchen furniture
photo: Sorin Morar I¯

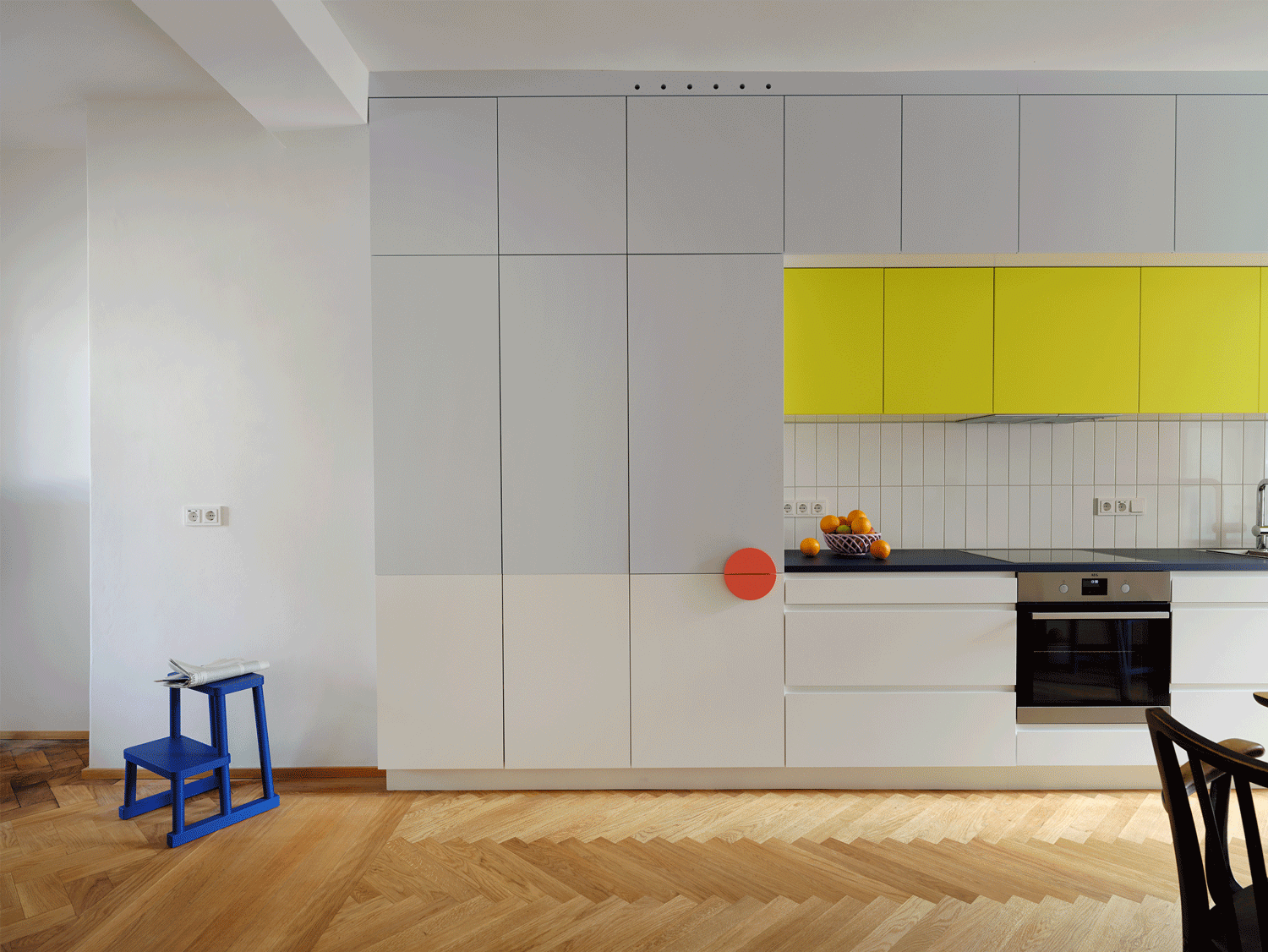

The kitchen furniture

consists of the old, white base units from the previous kitchen, which have been embedded in a light blue wall unit with new, colorful yellow wall units. This has not only created space for all kitchen utensils and a tall fridge, but also additional storage space.
_I
I_
¯I the kitchen cabinet
photo: Sorin Morar I¯

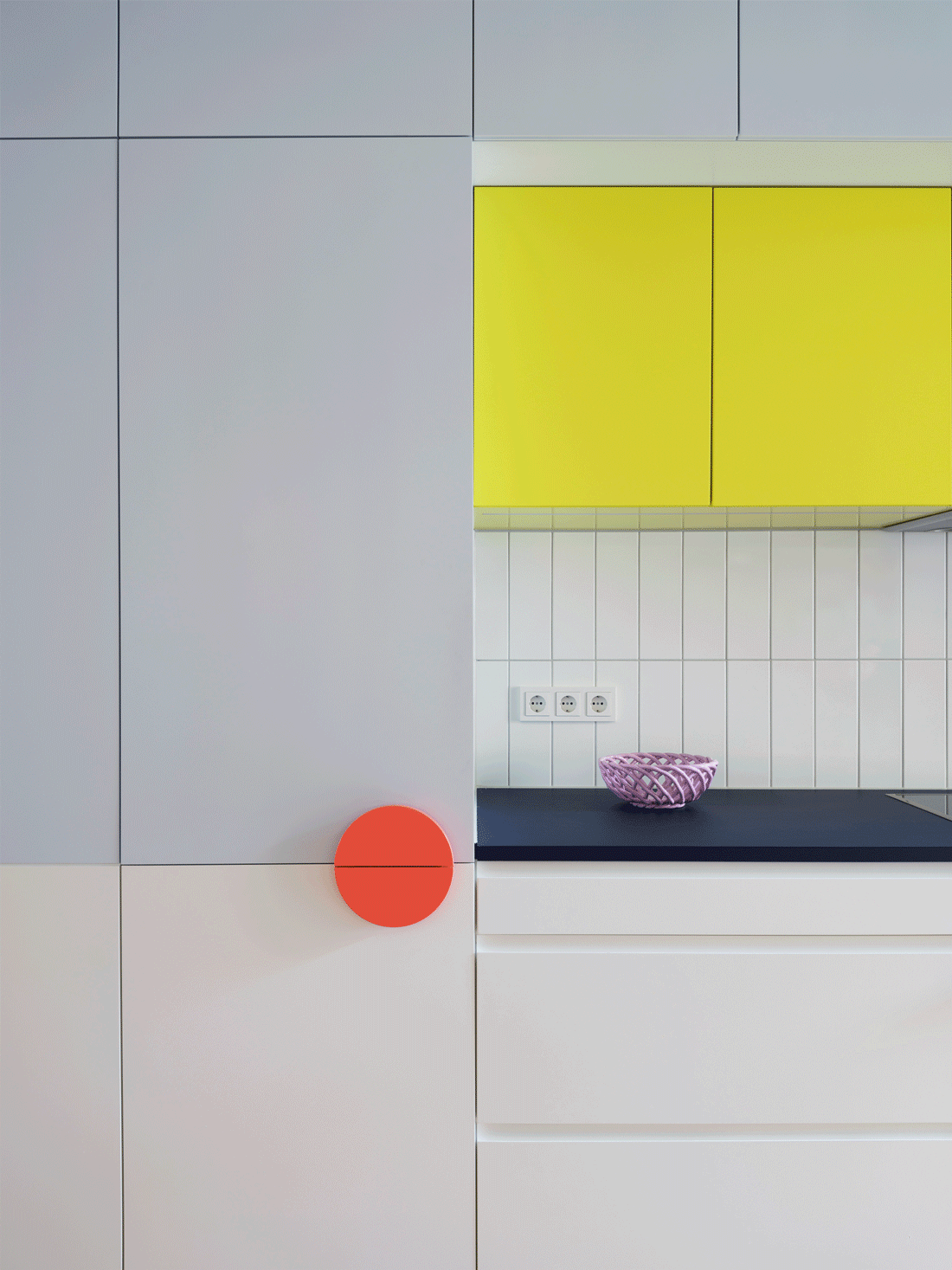

The refrigerator handle

was designed as a splash of color and eye-catcher, transforming the kitchen into a three-dimensional graphic.
_I
I_
¯I the flooring
photo: Sorin Morar I¯

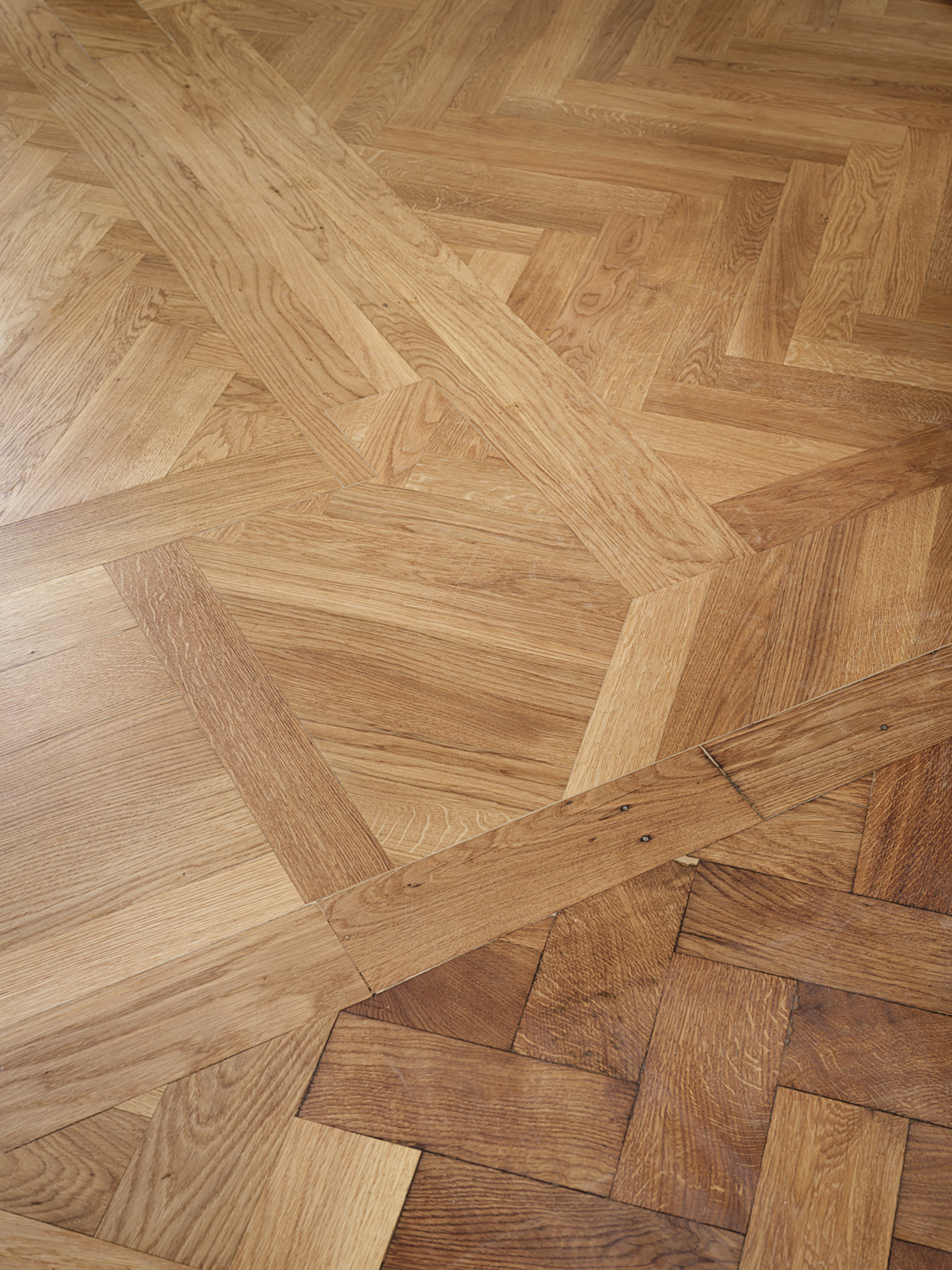

On the floor made of old and new

oiled oak parquet,

the positions of the old walls were left visible or only filled with new parquet in order to preserve as much of the original parquet as possible.
_I
I_
¯I the hallway
photo: Sorin Morar I¯

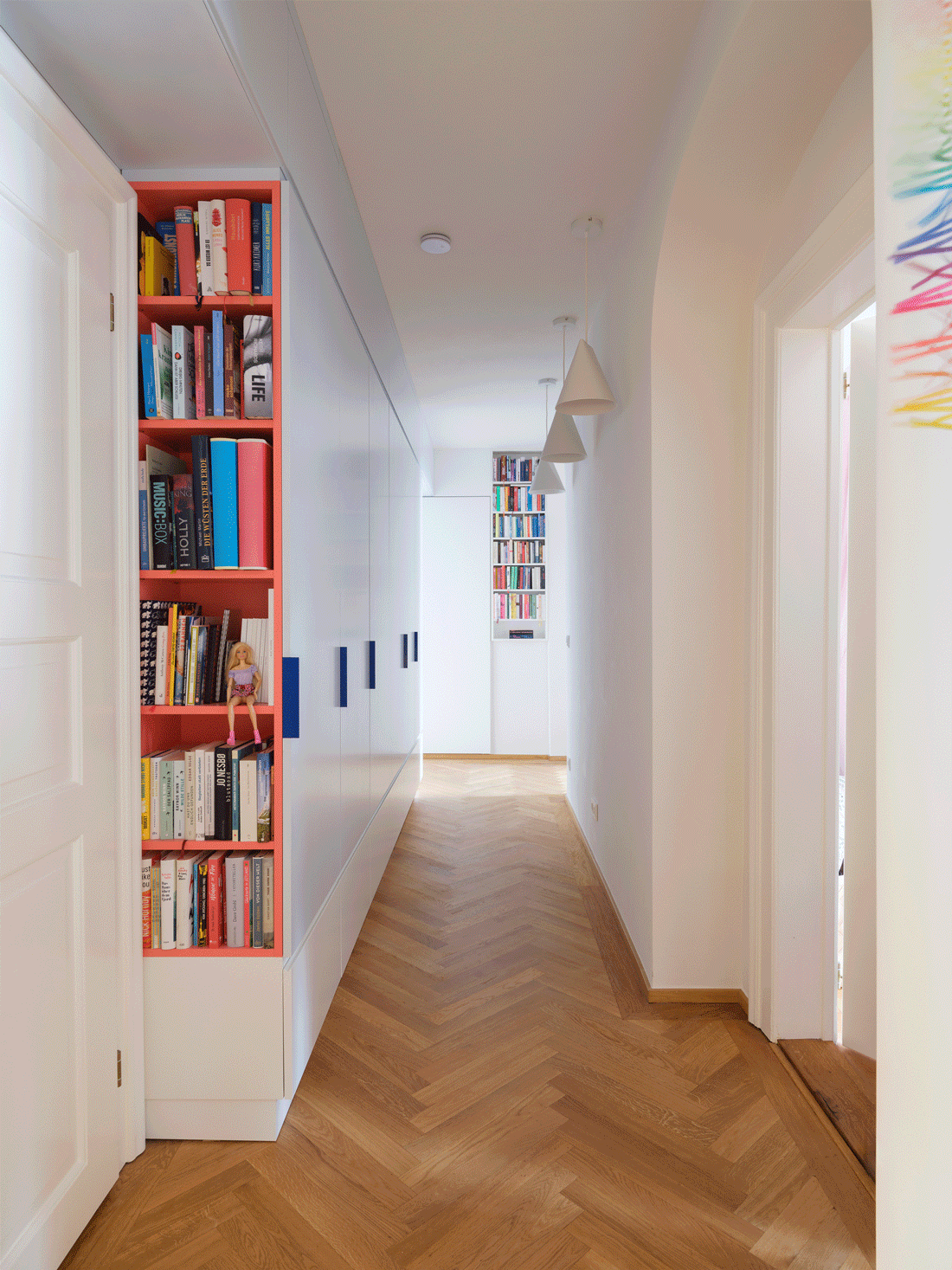

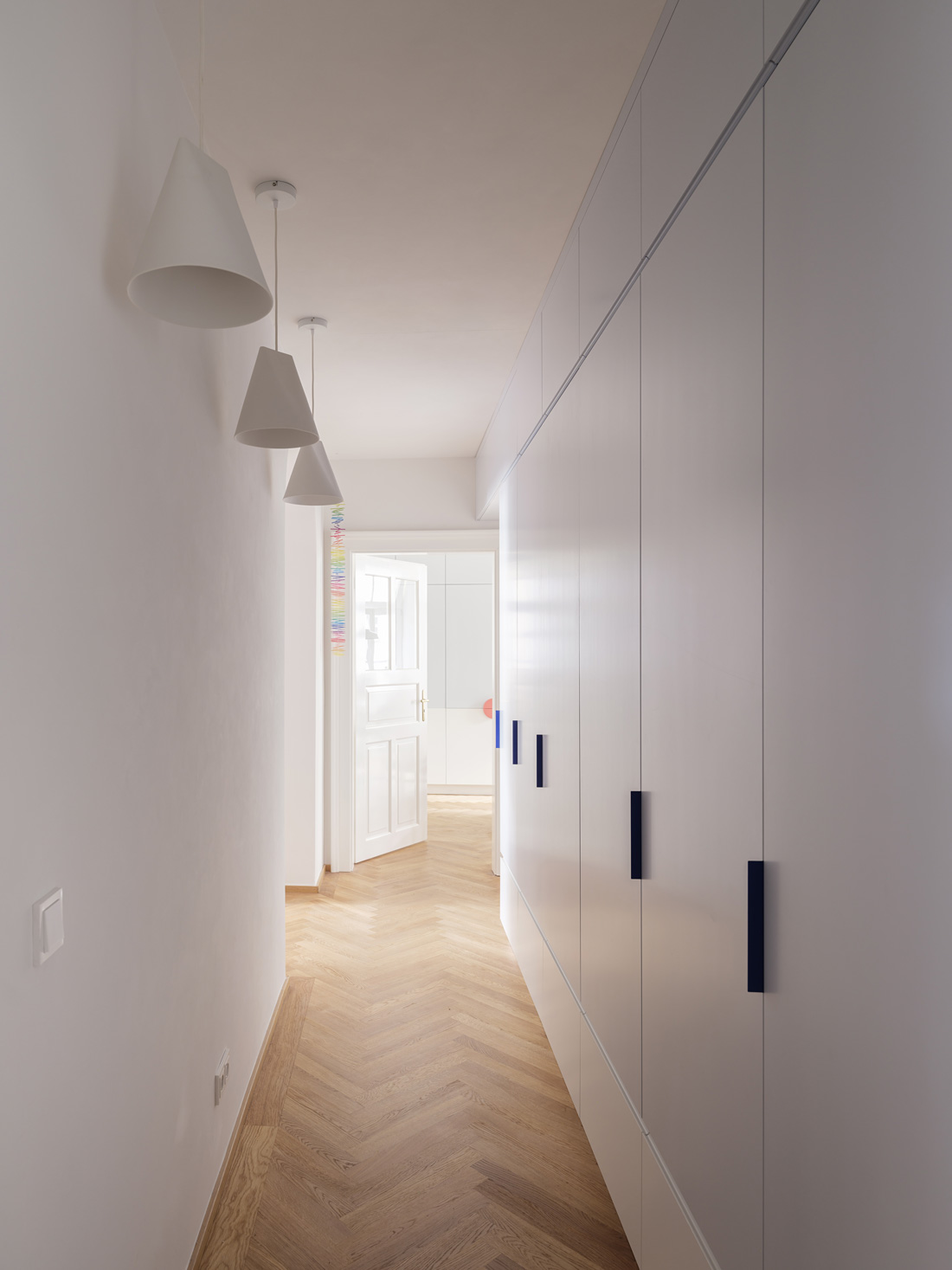

The hallway

was fitted with a large built-in unit that solves almost all of the family's storage space problems.
_I
I_
¯I the hallway
photo: Sorin Morar I¯

The hallway furniture

was designed to match the color of the kitchen furniture and the bathrooms and surprises with open, colored indentations at the passageways to the bathroom and front door.
_I
I_

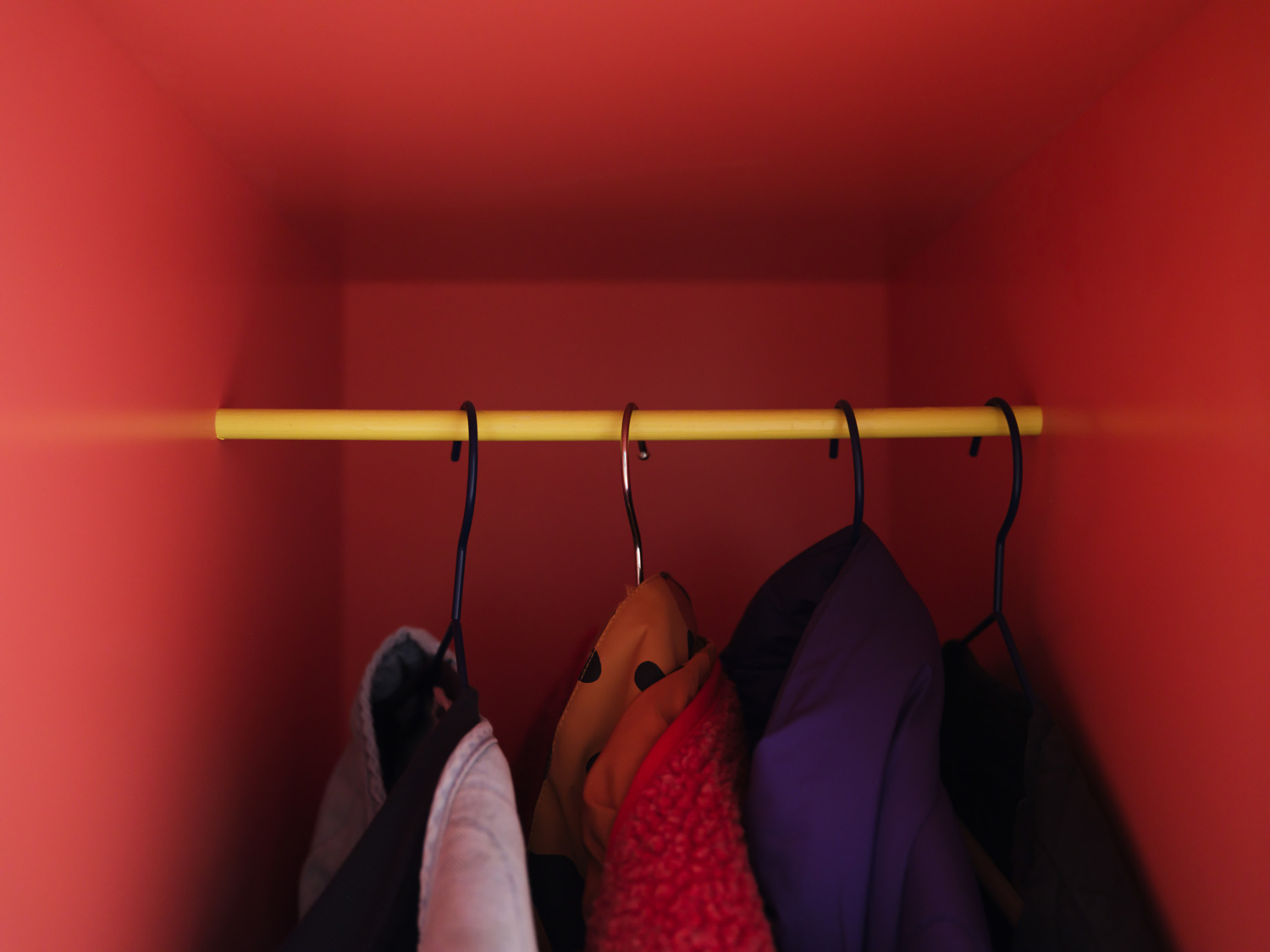

¯I the hallway closet
photo: Sorin Morar I¯
The

coat rack

was also integrated into the hallway furniture next to the entrance door.
_I
I_

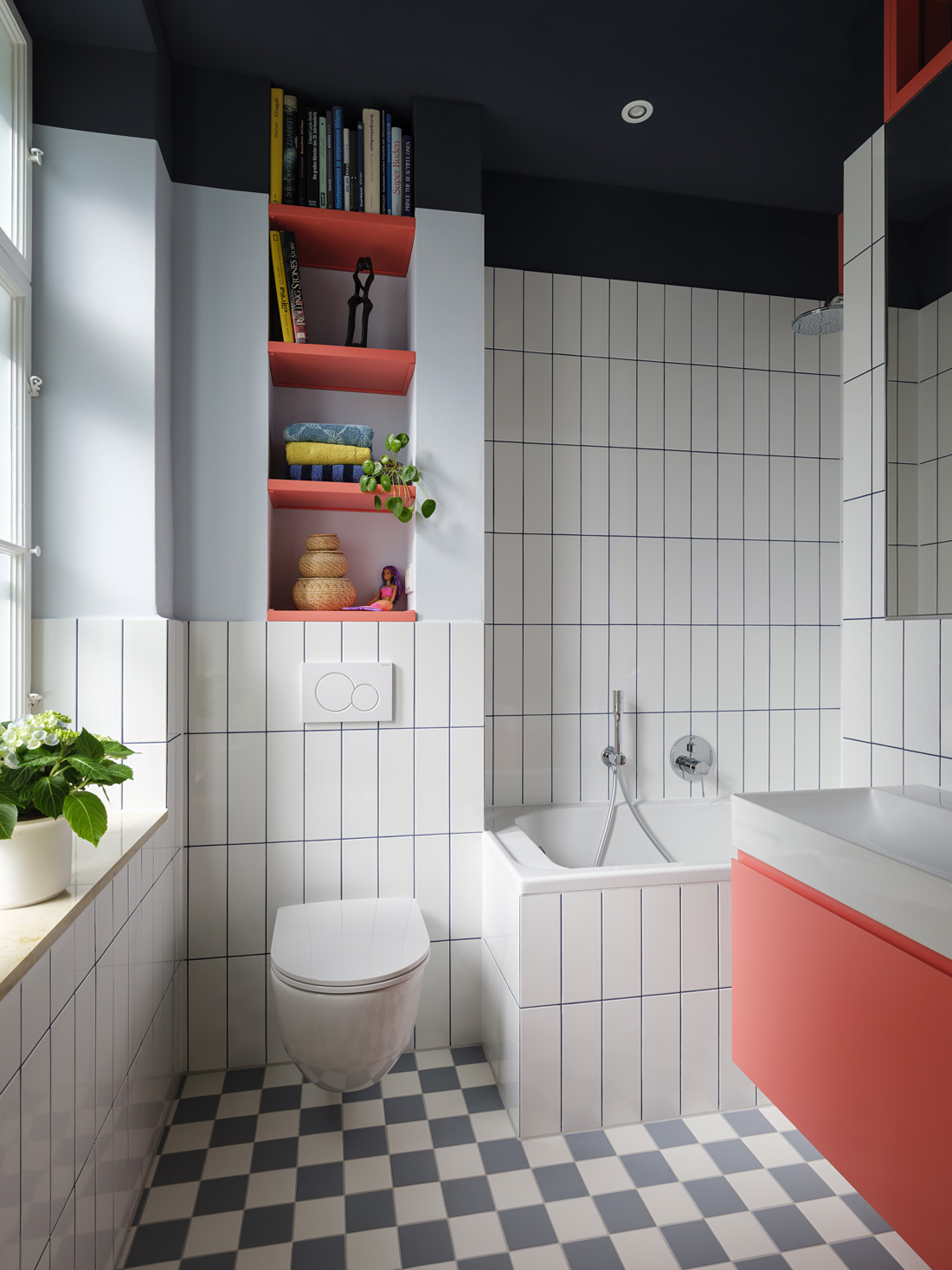

¯I Bathroom with a bathtub
photo: Sorin Morar I¯

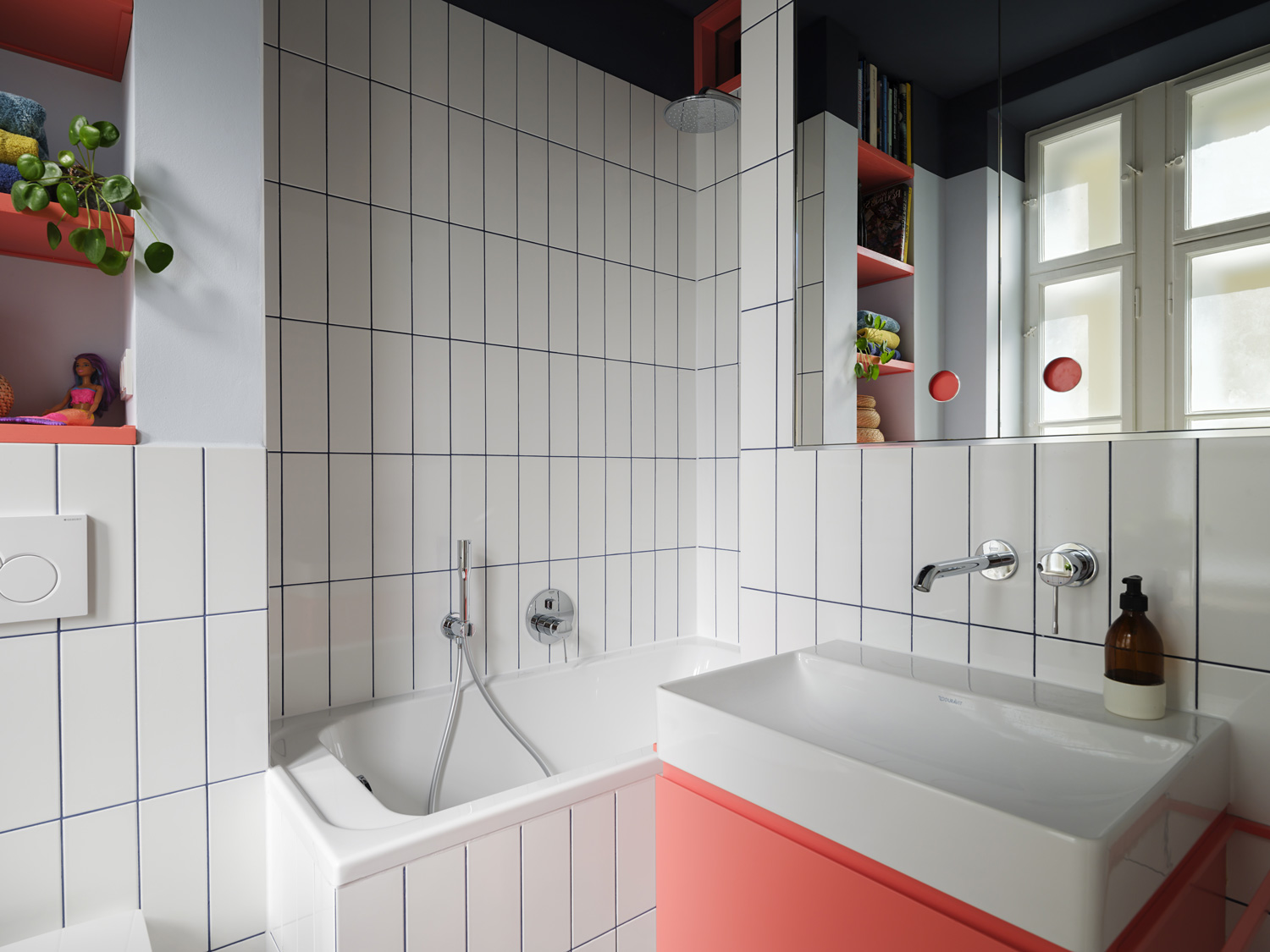

The bathroom

is now accessed from the kitchen. It is positioned in the same place as the old bathroom, but has been significantly optimized in terms of space. Every square centimetre has been optimally utilized, so that despite the significant reduction in size compared to the previous bathroom, there is still room for a small bathtub. The colors white, light blue, dark blue and coral as an accent color were also combined here.
_I
I_
¯I the bathroom
photo: Sorin Morar I¯
The compact bath has been integrated into a niche in such a way that it does not require a shower curtain.

The mirror cabinet

above the washbasin is set into the wall. Optimal use of space, even if not ideal in terms of sound insulation.
_I
I_

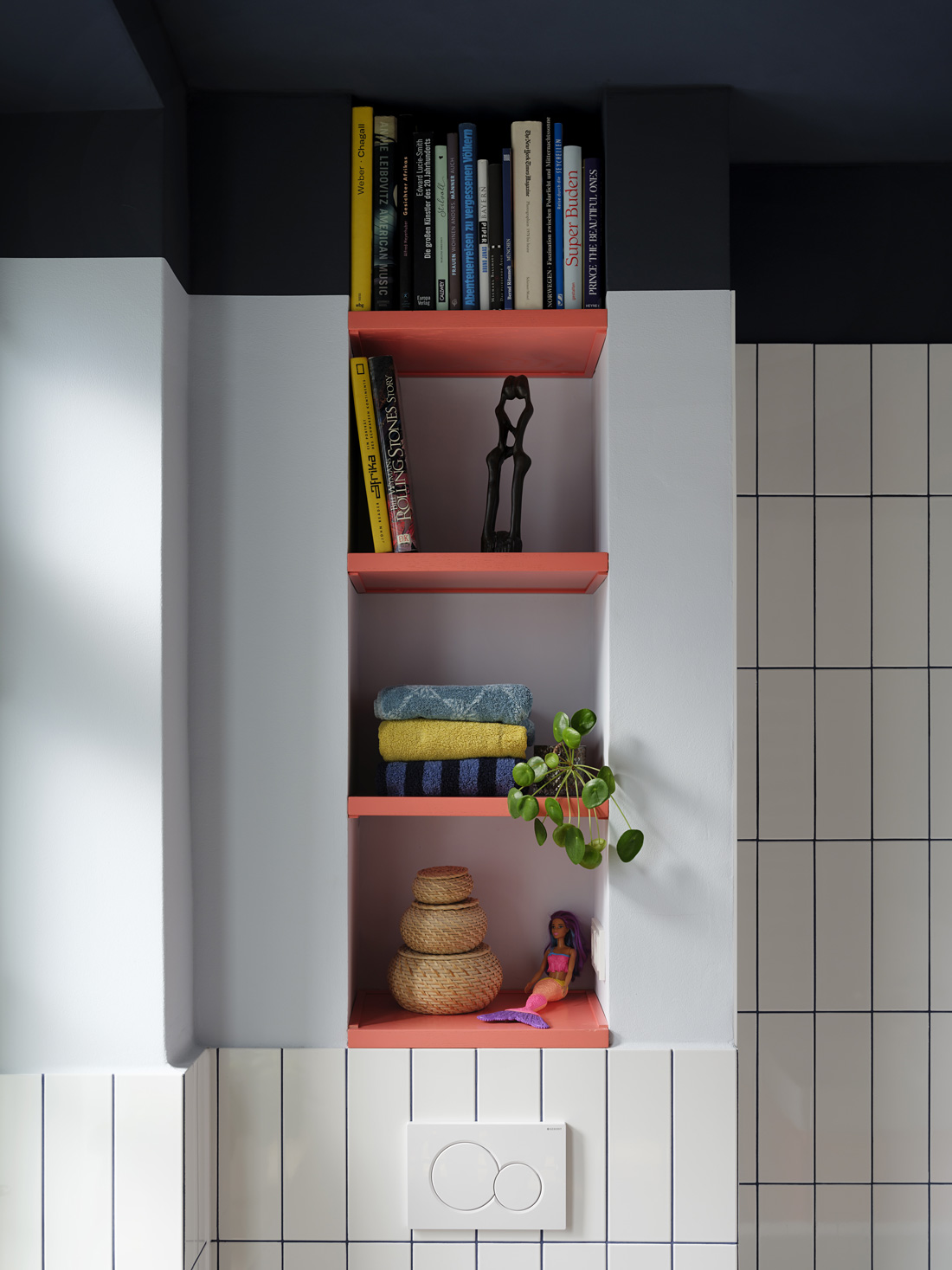

¯I bathroom shelf
photo: Sorin Morar I¯
The bathrooms were visually divided into three parts. As in the kitchen, the lower area is white. The middle area is painted in a light shade of blue. White tiles with dark blue grouting complement the lower levels. The ceiling and the ceiling frieze were painted dark blue. Coral was also used here as an accent color. Where possible, old components were also integrated into the new concept - such as here

the existing shelving

which was simply given a new coat of paint.
_I
I_

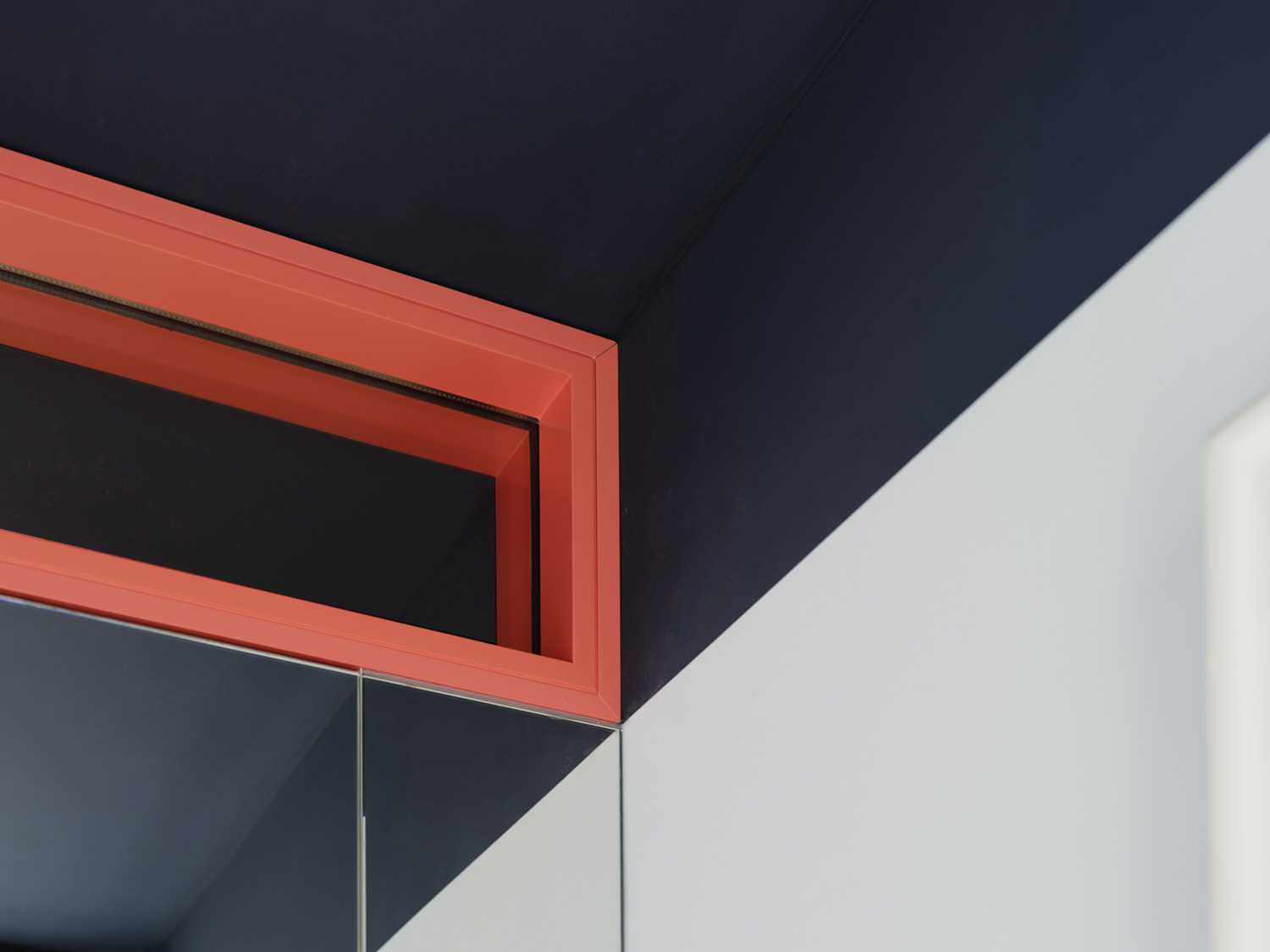

¯I top windows
photo: Sorin Morar I¯
Two

top windows

were positioned between the two bathrooms to provide the small shower room with natural light.
_I
I_
¯I bathroom in detail
photo: Sorin Morar I¯

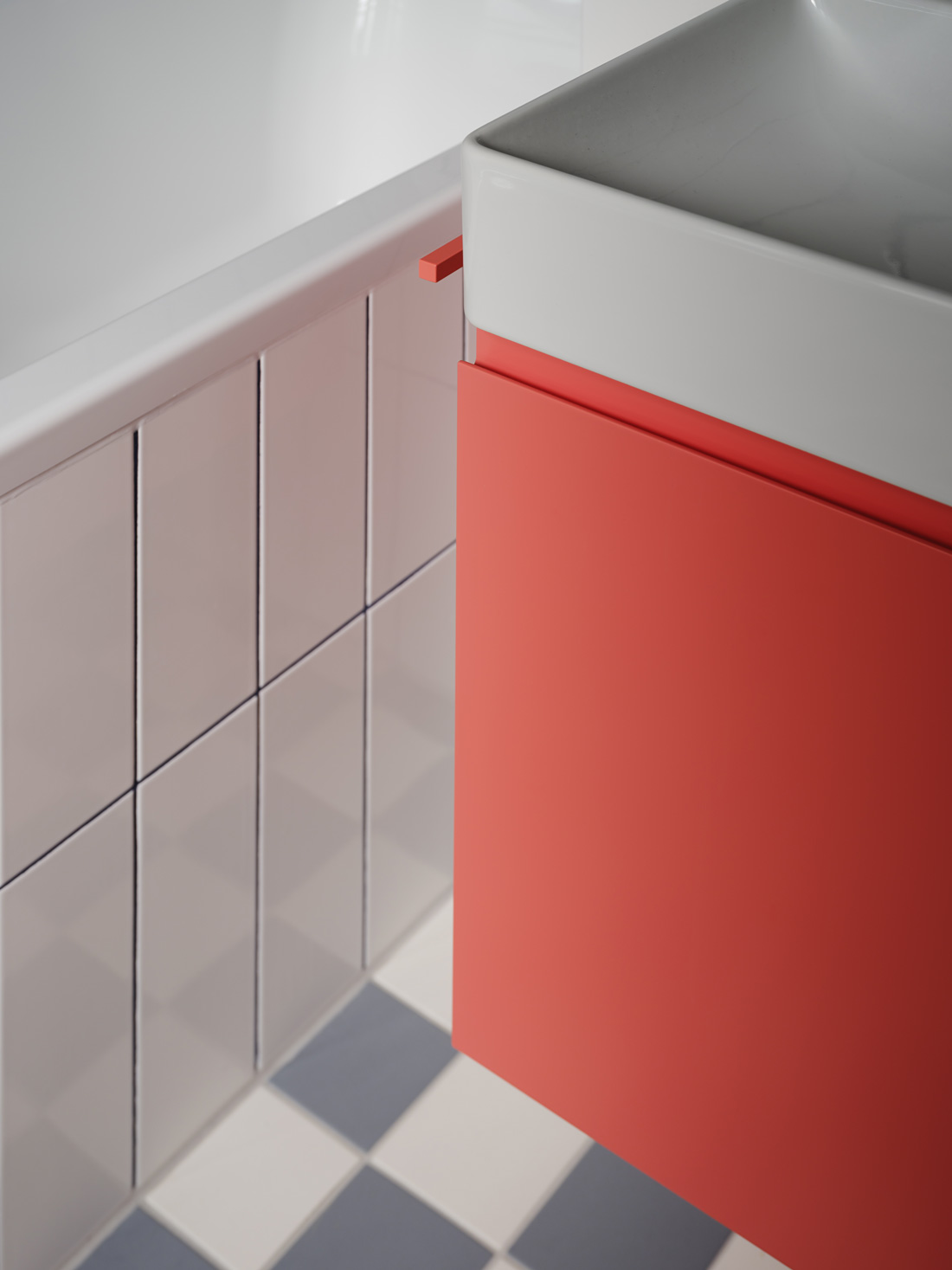

Attention was paid to even the smallest

details

- including the vanity unit of the washbasin and the towel rail.
_I
I_

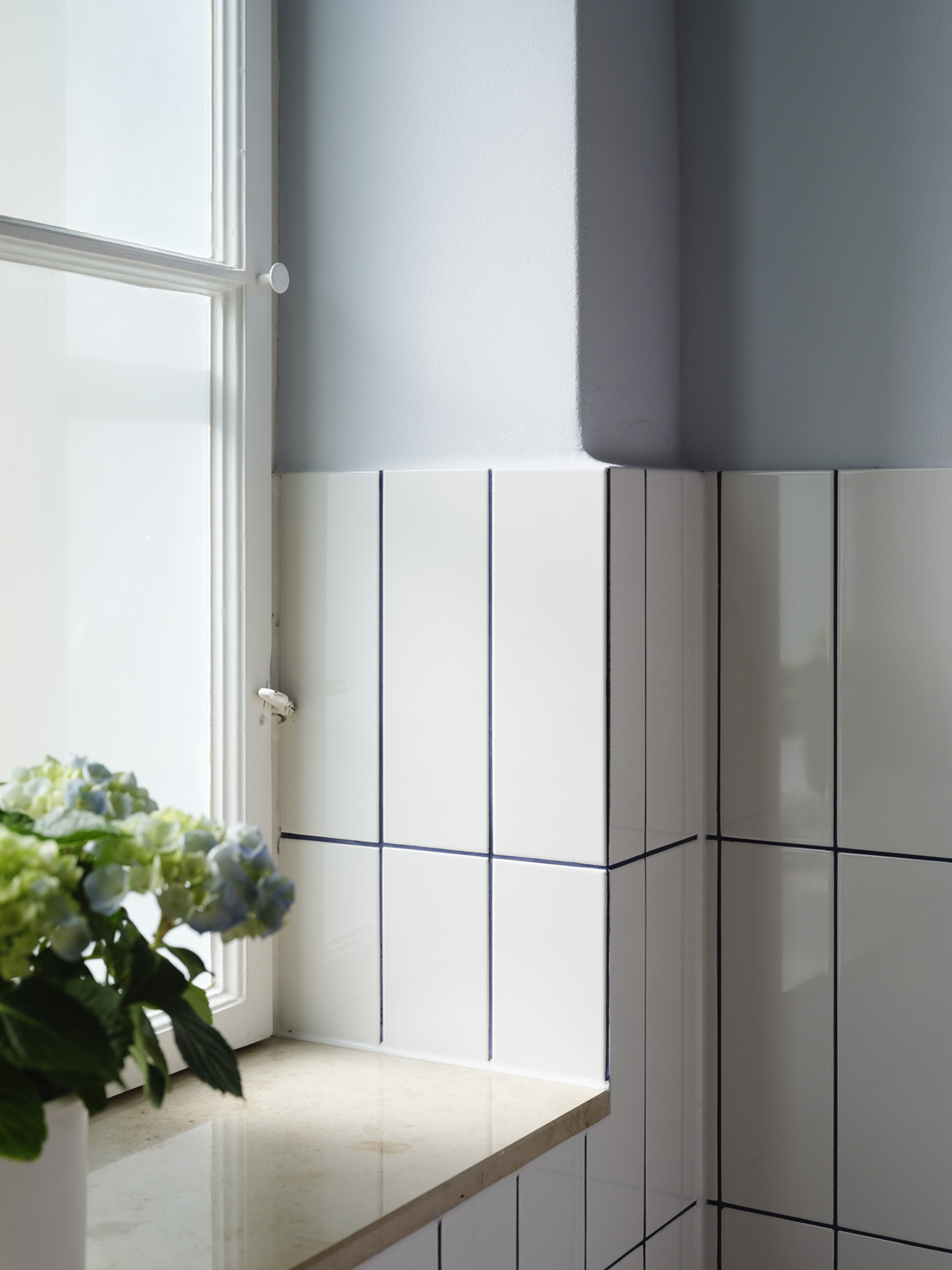

¯I the bathroom window
photo: Sorin Morar I¯
The transition between new and old can be seen next to the old

bathroom window

. The tiles were connected to the plaster with a coving, as was customary in buildings of this age. The natural stone window sill from an earlier renovation was also retained.
_I
I_
¯I the shower room
photo: Sorin Morar I¯

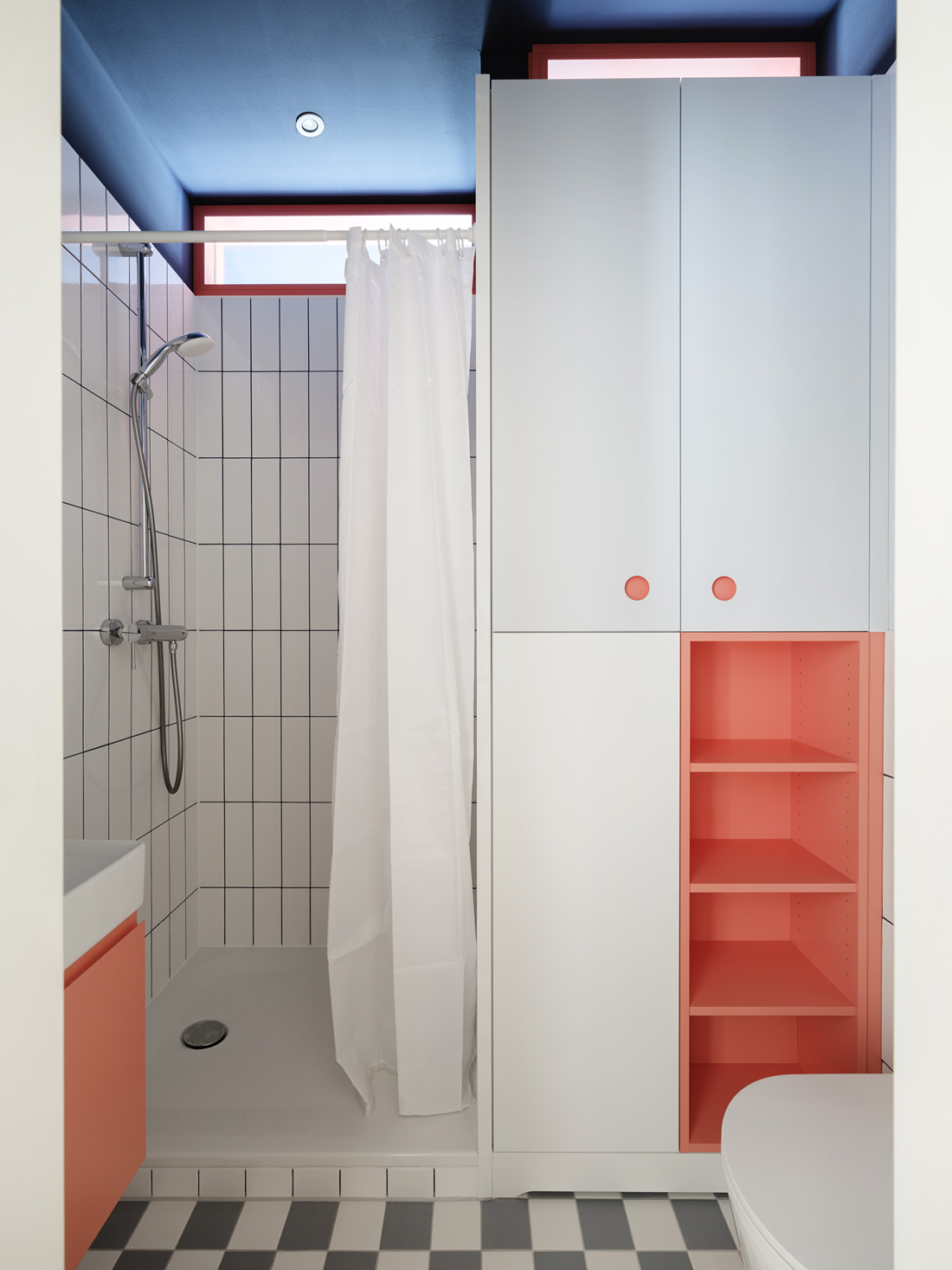

The shower room

is compact and tidy. The shower tray has been overlapped with the bathtub in the bath, saving space. The built-in cabinet is also the rear wall to the bath and the side wall to the shower. Here, too, the planning was absolutely space-saving. The two skylights provide the interior bathroom with natural light.
_I
I_
¯I the shower room
photo: Sorin Morar I¯

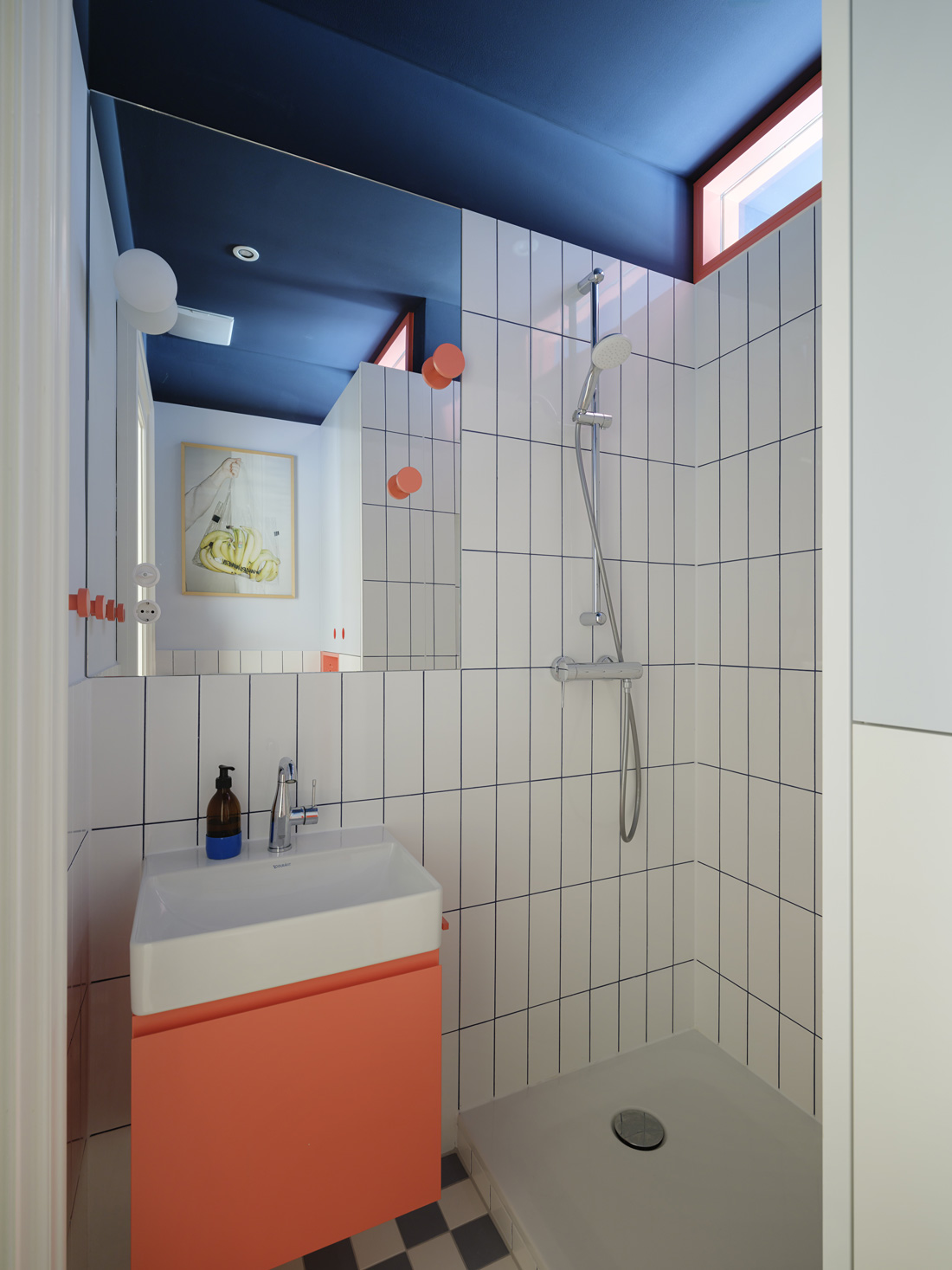

A large

mirror

integrated into the tiles visually enlarges the room. All elements in the room are also color-coordinated and contribute to the harmonious overall look. Despite its compact size, the bathroom does not feel cramped.
_I
I_

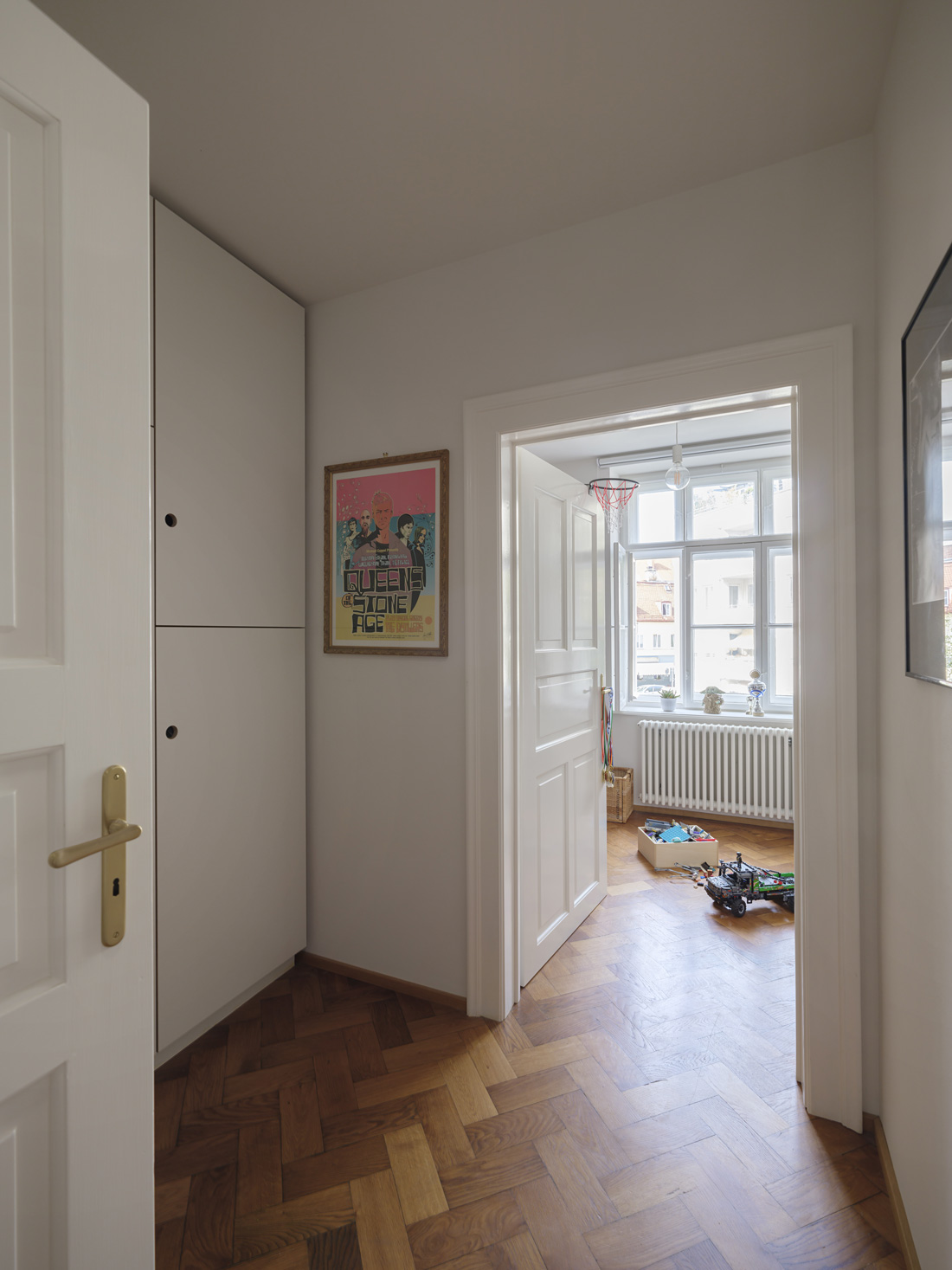

¯I the additional room
photo: Sorin Morar I¯
The last structural change was a small anteroom separated from the largest room in the apartment. This provides space for the laundry area as well as additional storage space. This also brought the room sizes of the two children to a similar size. Also nice to see here - all

existing doors

were saved and installed in new positions or in new walls.
_I
I_

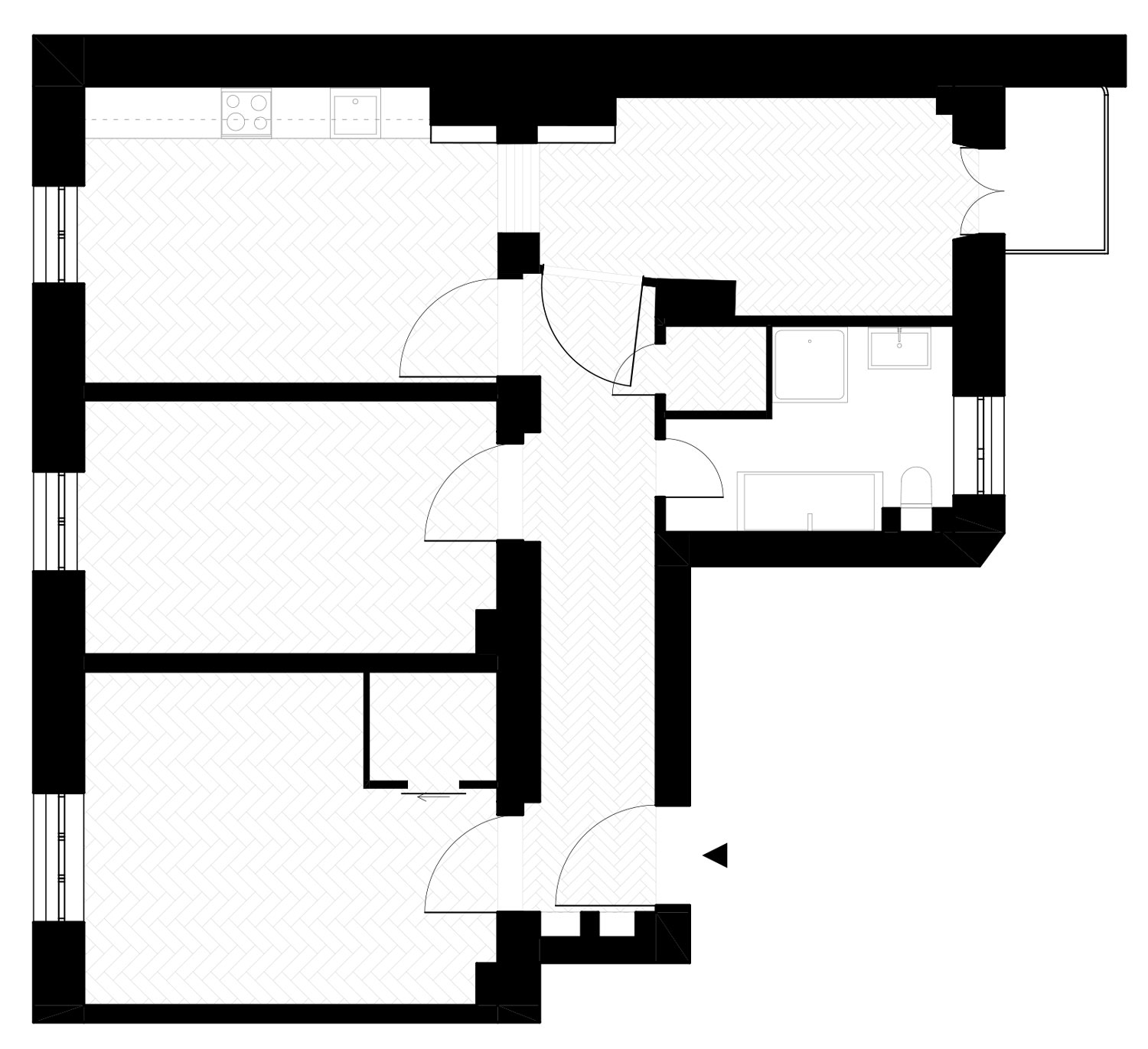

¯I FLOOR PLAN BEFORE THE RENOVATION
plan: IFUB* I¯

FLOOR PLAN BEFORE THE RENOVATION

_I
I_

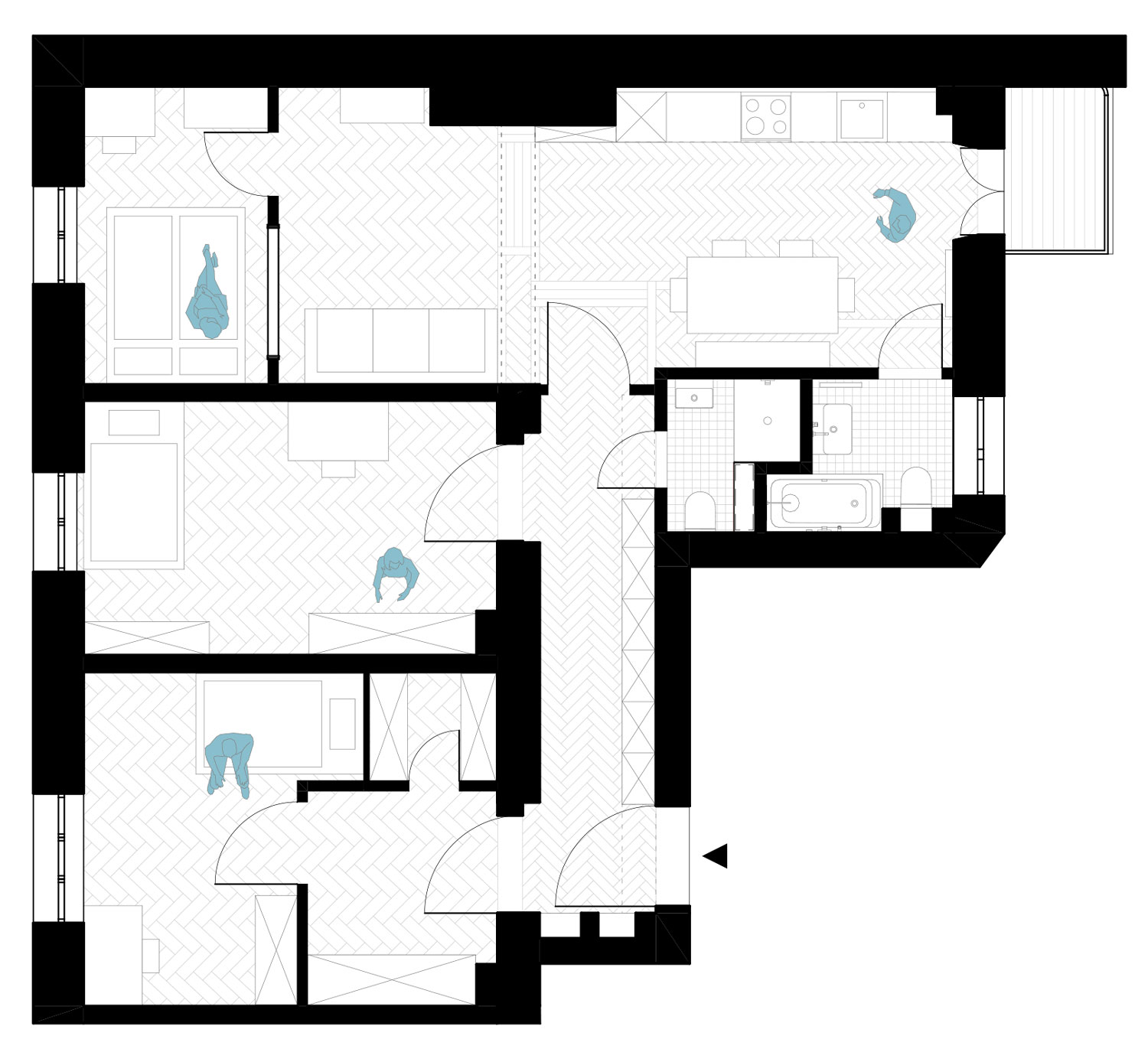

¯I FLOOR PLAN AFTER THE RENOVATION
plan: IFUB* I¯

FLOOR PLAN AFTER THE RENOVATION
